FLOOR-STANDING CENTRIFUGE

CELLSEP 6/720 R

During the last 15 years, the CELLSEP 6/720R has been proven to be one of the most reliable centrifuges in its class, with an enviable track record of producing consistent results.

This reputation extends throughout the world, making the Cellsep 6/720R floor-standing centrifuge the first choice for centrifuge users in laboratories worldwide.

Product Catalogue

Cellsep Floor-Standing Refrigerated Centrifuge Product Catalogue

MSE Cat No.	Description	Max. RPM	Max. RCF	Max. Capacity

MSF720.CR2.G	Cellsep floor standing refrigerated centrifuge (220V 50/60Hz bi-phase)	4,200	5,099	7200 ml
MSF720.CR2.K	Cellsep floor standing refrigerated centrifuge (230V 50/60Hz single phase)	4,200	5,099	7200 ml

	Rotors
43124-720	Swing-out rotor 6 x 1200 ml windshielded	4,200	4,950	6 x 1200 ml

Product Details

Technical Specifications for the Cellsep 6/720R Floor-Standing Centrifuges

Feature	Specification
Height (mm)	1,115 mm
Weight (mm)	745
Depth (mm)	1,020 mm
Weight (kg)	330 kg
Maximum Capacity	90 ml
Maximum Speed	4,200 rpm
Maximum RCF	5,099 xg
Timer	1 second to 99 hours, 59 minutes 1s step or continuous
Noise Output	53 dB
Power Supply (Option 1)	360V-415V, 32 Amp, 3 phase + N, 50/60Hz
Power Supply (Option 2)	220/240V, 32 A, single phase, 50/60 Hz
Power Supply (Option 3)	220/240V, 20 A, twin phase, 50/60 Hz
Number of Acceleration Rates	9
Number of Brake Rates	10
Number of Programs	50
Number of Steps Per Program	8
Display	Digital Green Led
Motor	Brushless induction drive
Control	Programmable Logic Controller
Safety Features	Automatic lid lock, motor overheat and over speed protection, rotor recognition, imbalance cut out, reinforced 12 mm steel guard ring, keypad lock, high-grade aluminium case and lid
Temperature Control Range	-20°C to +40°C
Catalogue Number (Option 1)	220/240V, 50/60Hz 4200 RPM MSF720.CR2.KG
Catalogue Number (Option 2)	220/240V, 50/60Hz 4700 RPM MSF720.CR3.KG

Accessories

Accessories for CELLSEP 6/720R floor-standing centrifuge

Tubes and Bottles Rotors & Accessories

Cat. No	Adaptor	Rotor Capacity	Max. RPM	Max. RCF	Max. Φ mm
43124-720	Swing-out rotor	6 x 1200ml	4,200	4,950	98
43155-13546	Round Adaptor for 20 x 50 ml universal tube (red)	N/A	N/A	N/A	20 x 17 mm
43155-13696	Round Adaptor for 28 x 30 ml universal tube (yellow)	N/A	N/A	N/A	28 x 29 mm
43155-1526	Round Adaptor for 24 x 50 ml Falcon tube (beige)	N/A	N/A	N/A	24 x 30.5 mm
43155-1536	Round Adaptor for 48 x 15 ml Falcon tube (maroon)	N/A	N/A	N/A	48 x 17 mm
43155-158	Round Adaptor for 200 ml bottle	N/A	N/A	N/A	6 x 60 mm
43155-159	Round Adaptor for 300 ml bottle	N/A	N/A	N/A	6 x 70 mm
43155-XXXXCL	Round Adaptor customised (to fit tubes or bottles of your specification)	N/A	N/A	N/A	N/A
43155-140	Adaptor for triple or quad blood bag (red – set of 6 in oval bucket)	N/A	N/A	N/A	N/A

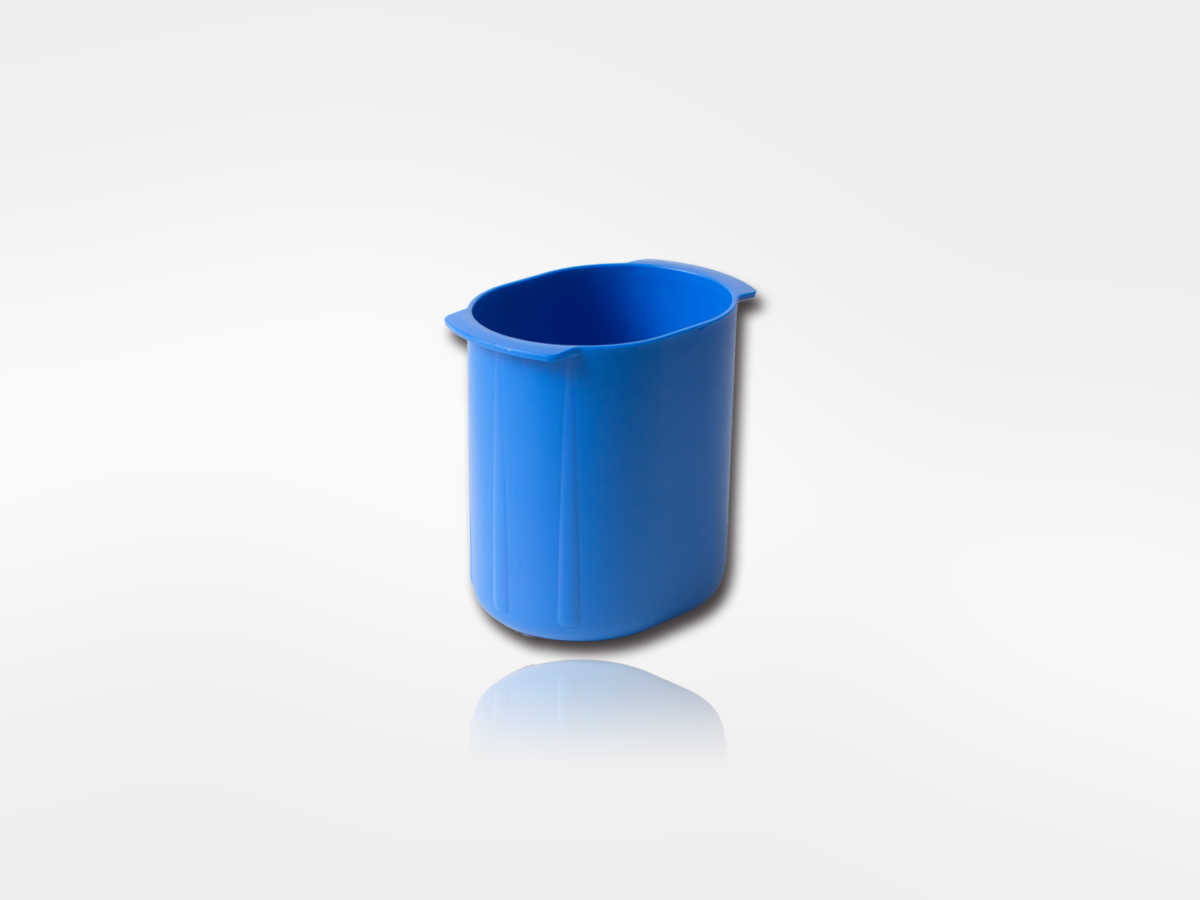

43155-141	Adaptor for 2 x double blood bags (blue – set of 6 in oval bucket)	N/A	N/A	N/A	N/A

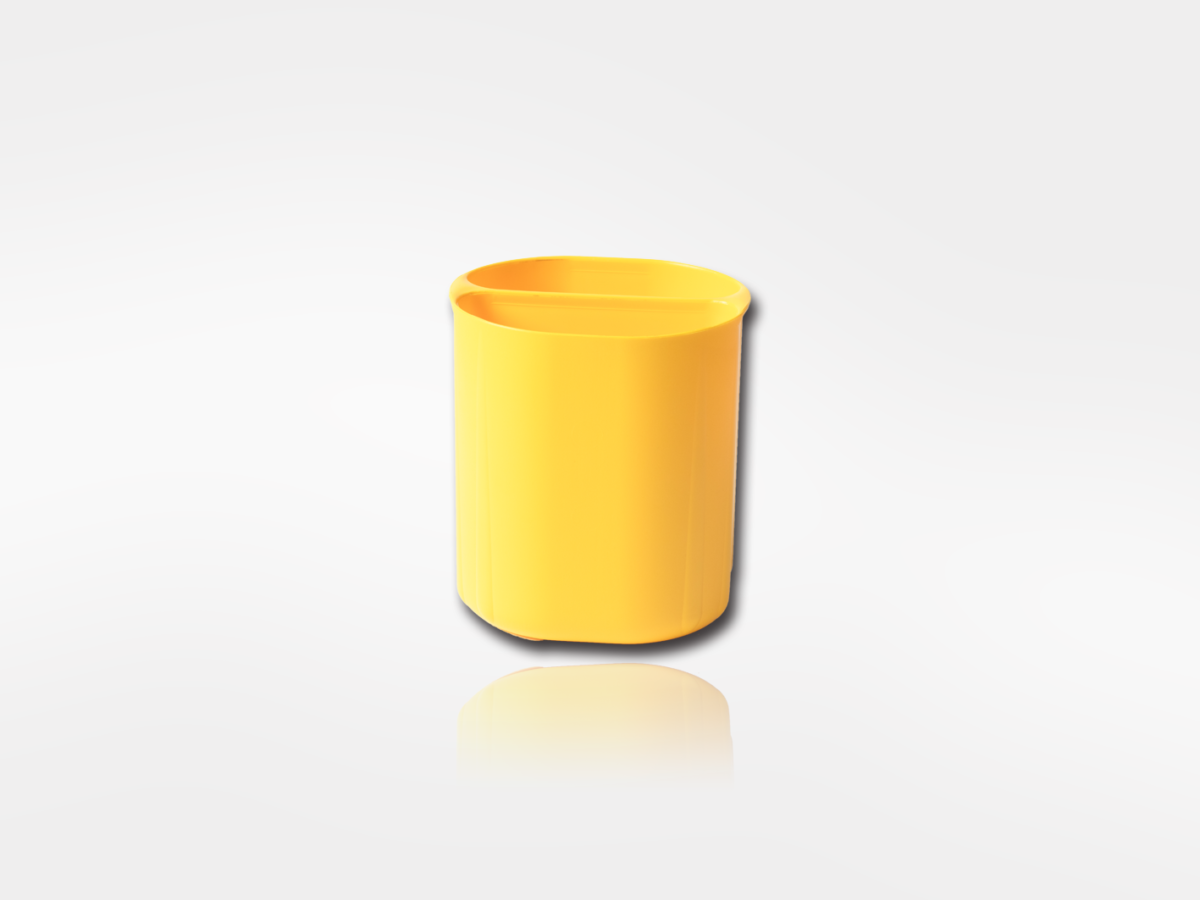

43155-142	Adaptor for 2 x double blood bags with divider (yellow – set of 6 in oval bucket)	N/A	N/A	N/A	N/A
43551-1237	StemXtract system for variable volume blood bags ideally for cord blood (in oval bucket)	N/A	N/A	N/A	N/A
34153-32726	Stacking adaptor	N/A	N/A	N/A	N/A

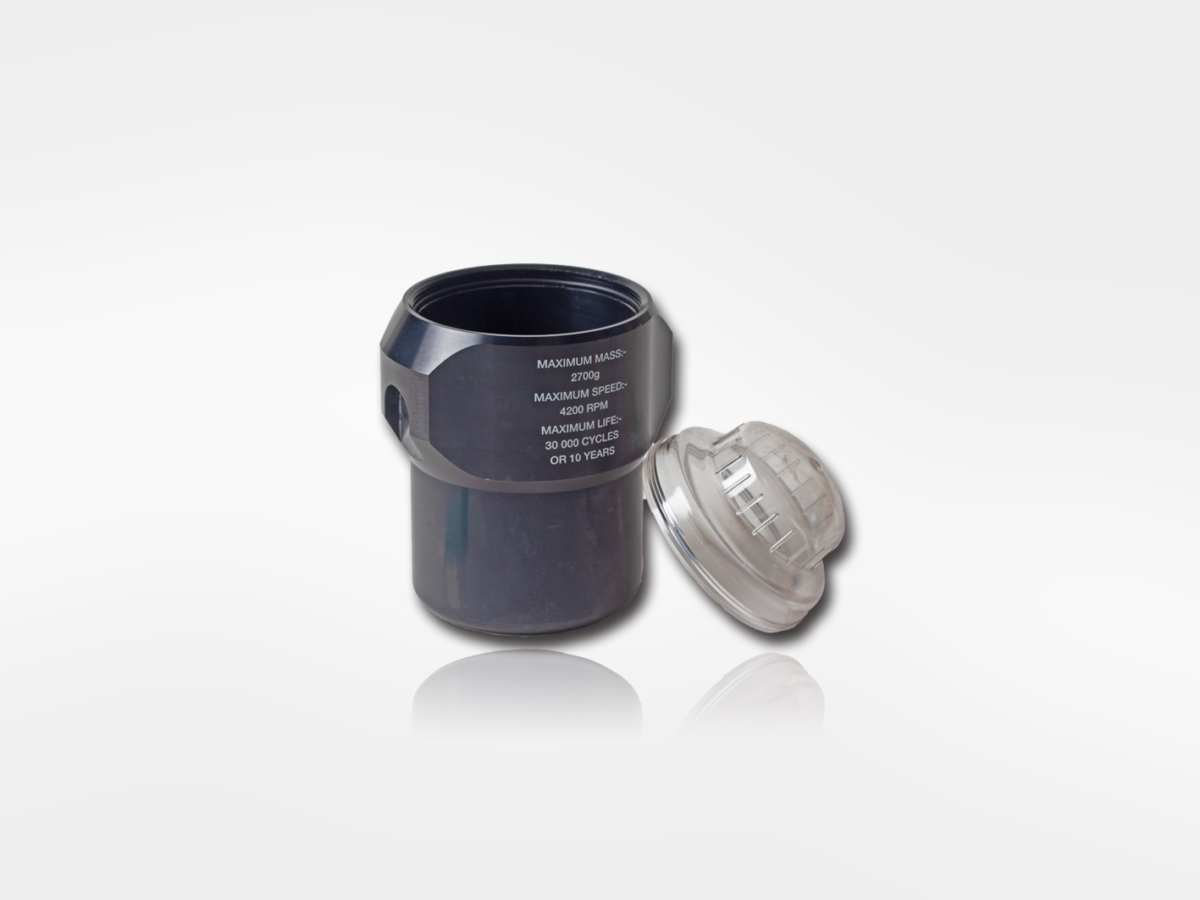

72100.286C	Spanner for 1000 ml bucket lid	N/A	N/A	N/A	N/A
43551-103A6	200 ml polycarbonate bottle	N/A	N/A	N/A	1 x 127 mm
43551-11416	300 ml polycarbonate bottle	N/A	N/A	N/A	1 x 130 mm
43551-1156A	1000 ml polycarbonate bottle	N/A	N/A	N/A	1 x 152 mm
43551-129	1200 ml polycarbonate bottle	N/A	N/A	N/A	1 x 184 mm

Blood Bag Adaptators

Cat. No.	Blood Bag Adaptator	Colour	Rotor Capacity	Max. RPM	Max. RCF
43155-140	1 x Triple or Quad Blood Bags	Red	6 x Triple or Quad Blood Bags	4,200	4,930 xg
43155-141	2 x Single or Double Blood Bags	Blue	12 x Single or Double Blood Bags	4,200	4,950 xg
43155-142	2 x Single or Double Blood Bags with Divider	Yellow	12 x Single or Double Blood Bags	4,200	4,969 xg

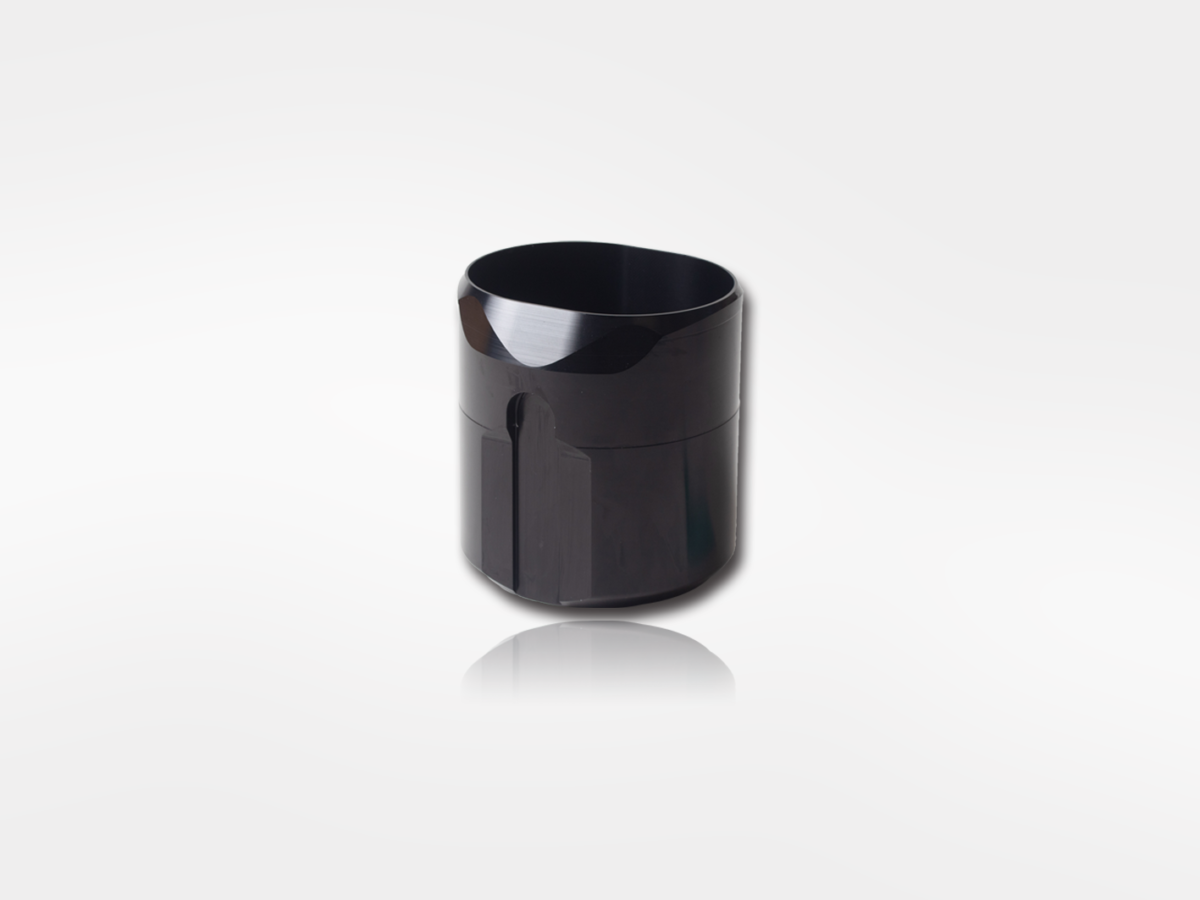

43155-129	1,200ml PP Bottle	White	6 x 1,200ml PP Bottle	4,200	4,950 xg

Downloads

Download Product Brochure, Catalogue, and relevant product documentation.

Download Cellsep 6/720R Floor-Standing Centrifuge Product Brochure (v.1.00)

Download Cellsep 6/720 R Floor-Standing Centrifuge Product Brochure

Download MSE Centrifuges Product Catalogue (v.1.00)

Download MSE Centrifuges Product Catalogue

MSE Centrifuges Video Presentation

MSE Centrifuges product video presentation

SAFETY FIRST

Out of balance cut-out and automatic rotor recognition. Reinforced steel guard ring and 12 mm stainless steel lid locking points. Motor overheat and over speed protection.

PRACTICALITY

Intuitive and easy to use control. Optimum height for easy loading. Smooth and easy to clean surface. All accessories fully autoclavable.

RELIABILITY

More than 80 years of experience in the industry. Robust and easy to last. High level final quality control before dispatch from our factory.

VERSATILITY

Fully programmable with up to 9 different accelerations and 10 brake rates. Various range of accessories. Custom-made adaptors available on request.

EASE OF USE

Maintenance free, brushless drive. spare parts available for at least 10 years after production has ceased. Easy access to components via the front panels.
